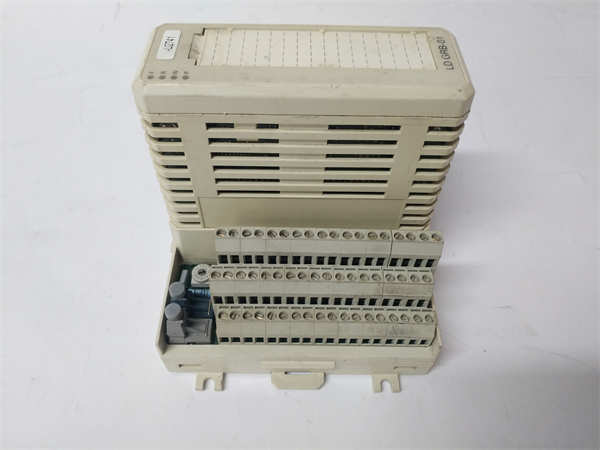

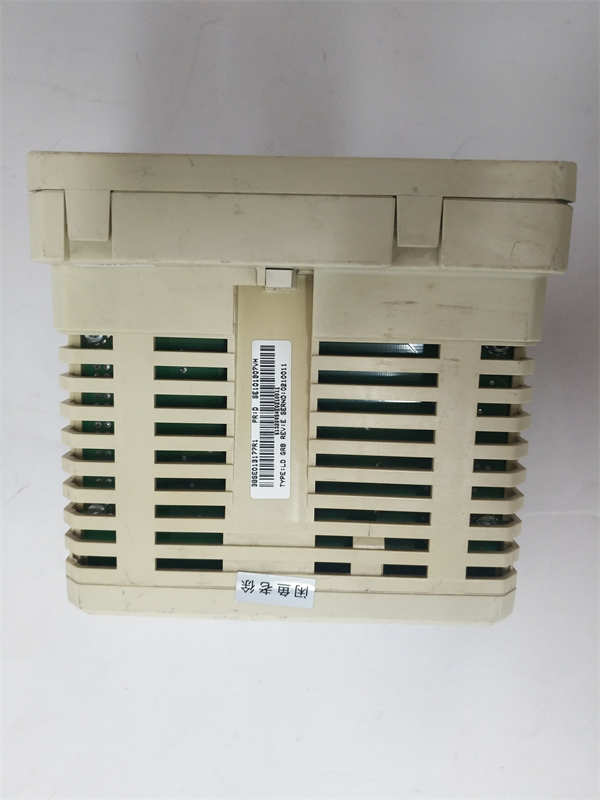

ABB LDGRB-01 3BSE013177R1

The ABB LDGRB-01 3BSE013177R1 is a high-integrity safety relay module manufactured by ABB for its critical safety and control systems. This module is a fundamental component in building Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD) systems, designed to reliably execute safety functions and protect personnel, equipment, and the environment.

Application Scenarios:

In a gas compression platform, an unexpected pressure surge triggers a critical alarm. Safety sensors send a signal to the ABB LDGRB-01 3BSE013177R1 module, which is part of the platform's ESD system. The module instantly and reliably processes this signal, activating its relays to shut down the gas compressors and isolate the relevant sections of the pipeline. This decisive action, driven by the LDGRB-01, prevents a potential incident, showcasing its indispensable role in managing high-risk processes where failure is not an option.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: Certified High-Safety Integrity (SIL 3). The LDGRB-01 3BSE013177R1 is designed and certified to meet Safety Integrity Level 3 (SIL 3) according to international standards. This means it has a very low probability of dangerous failure, making it suitable for applications where the consequence of a failure could be catastrophic.

· •Innovation Point 2: Redundant and Self-Monitoring Architecture. Unlike standard relays, this module incorporates redundant internal channels with continuous cross-checking diagnostics. It can detect internal faults (e.g., contact welding) and external wiring faults, ensuring a safe state (de-energized) is achieved in case of any failure.

· •Innovation Point 3: Force-Guided Contacts (Positive Guidance). The relay contacts are mechanically linked. This design ensures that if one contact welds shut, the opposing contact cannot close, preventing a false "safe" signal. This is a critical hardware feature that underpins the module's reliability.

Application Cases and Industry Value:

In a pharmaceutical batch reactor, a ABB LDGRB-01 3BSE013177R1 was integrated into the safety interlock system for the agitator and cooling jacket. The system required a guaranteed shutdown if the reactor door was opened or a temperature limit was exceeded. The previous system had a history of nuisance trips. After implementing the LDGRB-01, the plant achieved a 99.9% safety function availability over 24 months. The module's high reliability and advanced diagnostics eliminated false trips, ensuring both operator safety and uninterrupted batch production, which significantly improved overall productivity.

Related Product Combination Solutions:

· •ABB LD800H 3BSE029799R1: A high-integrity safety controller that can be used as the central logic solver, with the LDGRB-01 modules acting as the final output elements.

· •ABB SD821 3BSE018105R1: A safety digital input module that can read signals from emergency stop buttons and safety gates, feeding signals to the safety controller that then commands the LDGRB-01.

· •ABB DI810 3BSE008508R1: A standard digital input module for non-safety signals that can coexist in a system with the safety-oriented LDGRB-01.

· •ABB TA510 3BSE004461R1: A termination unit that simplifies the wiring and marshalling of signals to and from safety modules like the LDGRB-01.

· •ABB SC510 3BSE003832R1: A communication module that allows the safety system containing the LDGRB-01 to interface with a higher-level DCS for monitoring and reporting.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ABB LDGRB-01 3BSE013177R1 must be performed by qualified personnel following strict safety procedures and ABB's guidelines. It is typically mounted on a DIN rail within a safety-certified PLC rack. Wiring is critical; using the correct cable types and following separation guidelines is essential to maintain the module's safety integrity level (SIL).Routine maintenance involves periodic functional testing, as mandated by safety standards, to verify that the module and the entire safety loop perform as designed. The module's diagnostic capabilities aid in this process. We provide comprehensive lifecycle support, from initial Safety Requirement Specification (SRS) review and system design to installation supervision, validation support, and long-term access to genuine ABB LDGRB-01 3BSE013177R1 modules. Our technical experts are trained in functional safety to ensure your system remains compliant and effective.
