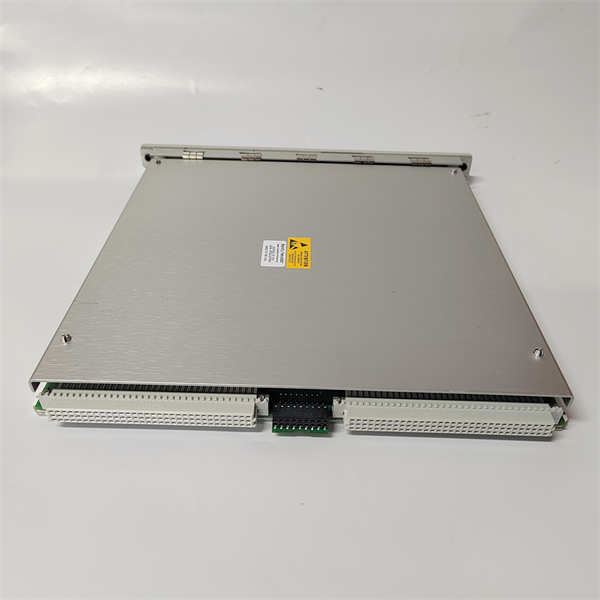

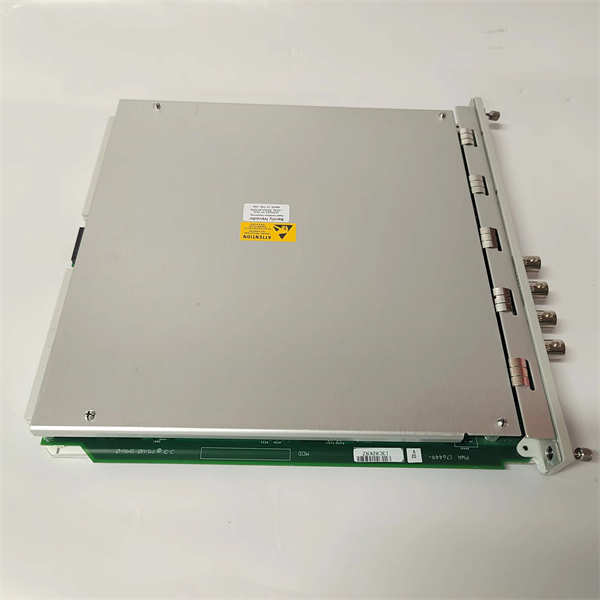

3500/42M 176449-02 BENTLY

The BENTLY NEVADA 3500/42M 176449-02 is a highly advanced, quad-channel proximity transducer interface module designed for the renowned 3500 machinery condition monitoring system. This module serves as a critical component in protecting valuable industrial assets by conditioning signals from eddy-current proximity probes to provide continuous, reliable monitoring of radial vibration and phase (Keyphasor) data.

Application Scenarios:

In a massive natural gas compressor station, the slightest imbalance or shaft misalignment in the high-speed compressor can lead to catastrophic failure. The BENTLY NEVADA 3500/42M 176449-02 module is installed in the 3500 rack, directly connected to proximity probes mounted on the compressor's bearings. It continuously monitors the shaft's radial vibration and its precise rotational position. If vibration levels approach a dangerous threshold, the module immediately alerts the control system, enabling preventive shutdown long before a catastrophic breakdown occurs, safeguarding both the multi-million dollar equipment and ensuring process safety.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: Integrated Quad-Channel Design for Superior Reliability. The 3500/42M 176449-02 consolidates monitoring for four measurement points into a single module. This high-density design reduces the physical footprint and wiring complexity within the 3500 rack compared to using single-channel modules, while maintaining the system's high reliability and TMR (Triple Modular Redundant) architecture principles.

· •Innovation Point 2: Advanced Dynamic Signal Processing. The module provides not only processed vibration values but also raw dynamic waveform outputs. This allows maintenance engineers to perform detailed analysis (like FFT) to diagnose specific machinery faults such as unbalance, misalignment, oil whirl, and rolling element bearing defects, enabling a shift from reactive to predictive maintenance.

· •Innovation Point 3: TÜV-Certified for Safety Applications. The 3500/42M 176449-02 is certified for use in Safety Instrumented Functions up to SIL 2. This formal certification underscores its reliability and makes it suitable for critical protection functions where the module itself is part of the safety loop, providing an extra layer of assurance.

Application Cases and Industry Value:

At a hydroelectric power plant, the units were experiencing unexplained low-frequency vibrations. Using the dynamic data from the BENTLY NEVADA 3500/42M 176449-02 modules, analysts identified the issue as hydraulic instability (vortex shedding) related to specific gate openings, not a mechanical fault. This precise diagnosis prevented an unnecessary and costly turbine teardown. The plant adjusted its operating envelope to avoid the problematic zone, based on the module's data, increasing annual energy production by 3% by allowing safer operation over a wider range.

Related Product Combination Solutions:

· •BENTLY NEVADA 3300 XL 8mm Proximitor: The eddy-current proximity probe that provides the raw gap voltage signal to the 3500/42M module.

· •BENTLY NEVADA 3500/15: A temperature monitor module that works alongside the 3500/42M to provide comprehensive protection (vibration + temperature).

· •BENTLY NEVADA 3500/22M: A transient data interface module that can capture and record event data related to alarms triggered by the 3500/42M.

· •BENTLY NEVADA 3500/25: A dedicated Keyphasor module that can be used if a separate, highly reliable Keyphasor signal is required to supplement the 3500/42M's phase detection.

· •BENTLY NEVADA 3500/92: A communication gateway that transmits all monitoring and alarm data from the rack, including from the 3500/42M, to a plant DCS or asset management system.
