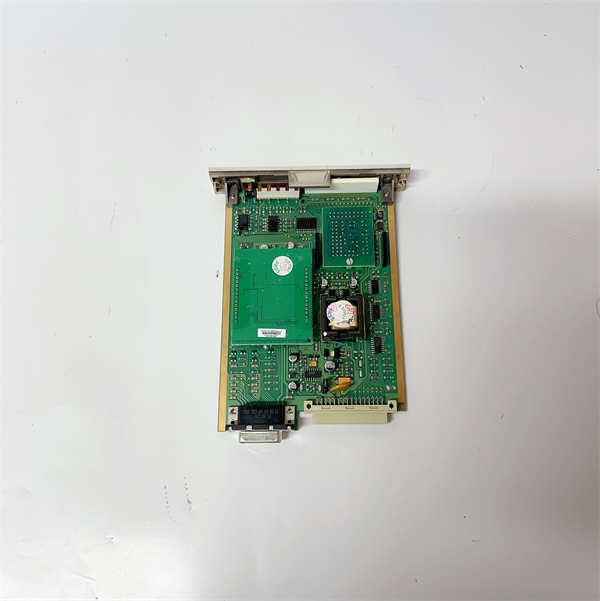

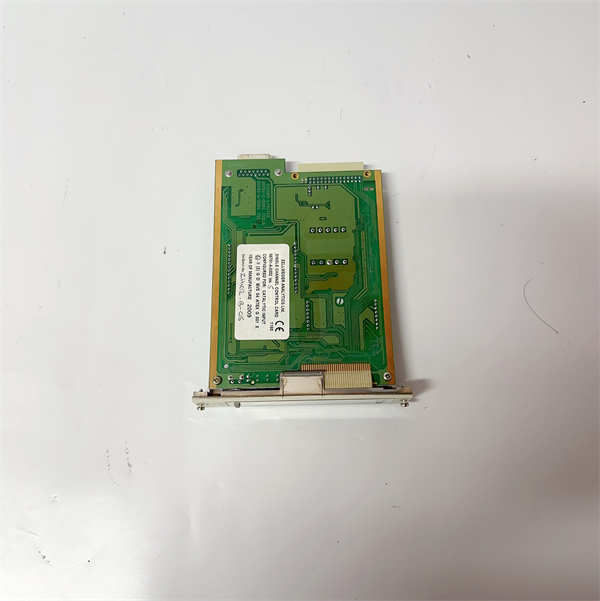

The Honeywell 05701-A-0302 is a high-density, 8-channel analog input module designed for Honeywell's Experion PKS Distributed Control System (DCS). This module serves as a critical interface between the field and the control system, accurately converting analog signals from process transmitters into digital data for the controllers.
In a large refinery's crude distillation unit, precise temperature and pressure measurements are vital for product quality and safety. Dozens of 4-20mA transmitters are installed on critical columns and pipes. The Honeywell 05701-A-0302 modules, housed in a remote I/O enclosure, continuously sample these signals. The high channel density of the 05701-A-0302 means fewer modules are needed, simplifying wiring and reducing cabinet space. Its high accuracy ensures the C300 process controller receives reliable data to execute advanced control strategies, maximizing yield and efficiency while operating within safe limits.
Main Parameters | Value/Description |
Product Model | Honeywell 05701-A-0302 |
Manufacturer | Honeywell |
Product Category | Analog Input Module (High Density) |
DCS Platform | Experion PKS |
Controller Compatibility | Experion C Series, e.g., C300 Controller |
Number of Channels | 8 channels |
Input Signal Type | Typically 4-20 mA (configurable) |
Resolution | High resolution (e.g., 16-bit) for precise measurement |
Isolation | Channel-to-channel and channel-to-system isolation |
Hot Swap Capable | Yes, supports online module replacement |
Diagnostics | Comprehensive onboard diagnostics for fault detection |
Field Termination | Connects via a Field Termination Assembly (FTA) |
The Honeywell 05701-A-0302 is engineered with a focus on density, reliability, and signal integrity, offering distinct advantages:
· •Innovation Point 1: High-Density Design with Advanced Isolation: A key innovation is packing 8 independently isolated analog input channels into a single module width. Each channel has its own signal conditioning and Analog-to-Digital Converter (ADC), coupled with robust isolation barriers. This prevents ground loops and cross-talk, ensuring that a fault on one channel does not affect the others, guaranteeing data integrity for critical measurements.
· •Innovation Point 2: Hot-Swap Capability for Maximum Availability: The module is designed for true hot-swap replacement. This allows maintenance personnel to safely remove and replace a 05701-A-0302 module without powering down the entire I/O network or the controlling C300. This feature is crucial for processes requiring high availability, as it dramatically reduces mean time to repair (MTTR).
· •Innovation Point 3: Intelligent Diagnostics and Configuration: The module features extensive self-diagnostic capabilities, continuously monitoring its health and reporting issues like channel faults, loss of signal, or power errors to the control system. Configuration, such as setting the input type (e.g., 4-20mA, 0-10V) and alarm limits, is done seamlessly through the Experion PKS engineering environment, streamlining commissioning and maintenance.
A chemical plant specializing in polymer production was struggling with inconsistent product quality due to fluctuations in reactor temperature control. An investigation revealed that the legacy analog input cards had significant drift. The plant upgraded its Experion PKS system by installing new Honeywell 05701-A-0302 modules. The superior accuracy and stability of the new modules provided the control system with a much more reliable temperature reading. This allowed the advanced process control (APC) algorithms to function as designed, resulting in a 30% reduction in product viscosity variation and a significant decrease in off-spec material, directly boosting product quality and profitability.
The Honeywell 05701-A-0302 functions as part of a cohesive control architecture. Essential related products include:
· •Honeywell C300 Controller: The primary process controller that executes control logic based on the analog signals provided by the 05701-A-0302.
· •Honeywell 51401278-100 / 51401486-100 (FTA): The Field Termination Assembly that provides the physical terminal points for field wiring, which then plugs into the 05701-A-0302 module.
· •Honeywell 05701-A-0502 (AO Module): An analog output module that works in concert with the 05701-A-0302, receiving commands from the C300 to control valves and other final elements.
· •Honeywell 05701-A-0151 (DI Module): A digital input module for reading discrete signals (e.g., switch status, pump running feedback) within the same I/O subsystem.
· •Honeywell XYR5000 Transmitter: A typical field device whose 4-20mA output signal would be read by the 05701-A-0302 module.
Installation of the Honeywell 05701-A-0302 is designed for efficiency and safety. The module is installed into a designated slot in an Experion I/O rack. Critical field wiring is connected to the separate Field Termination Assembly (FTA), not the module itself. This design allows the 05701-A-0302 to be safely inserted or removed without exposing personnel to field wiring voltages.Maintenance is largely predictive, driven by the module's continuous self-diagnostics. The Experion PKS operator station displays the health status of all I/O modules, allowing issues to be identified and addressed proactively. The hot-swap capability is the cornerstone of its maintainability, enabling swift replacement to minimize process disruption. We provide end-to-end support, from system configuration and startup assistance to 24/7 technical support, ensuring the long-term reliability and performance of your 05701-A-0302 modules and the entire DCS.
