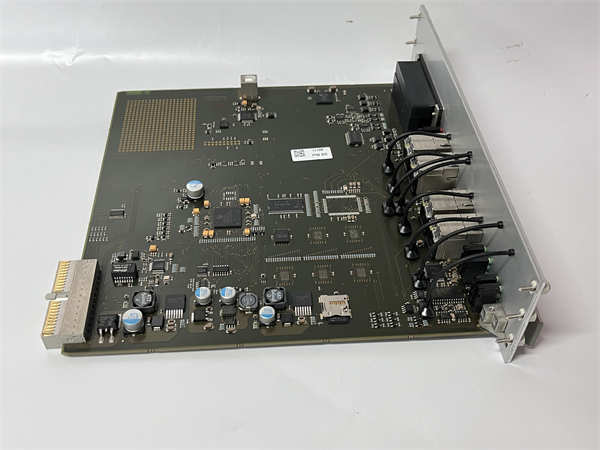

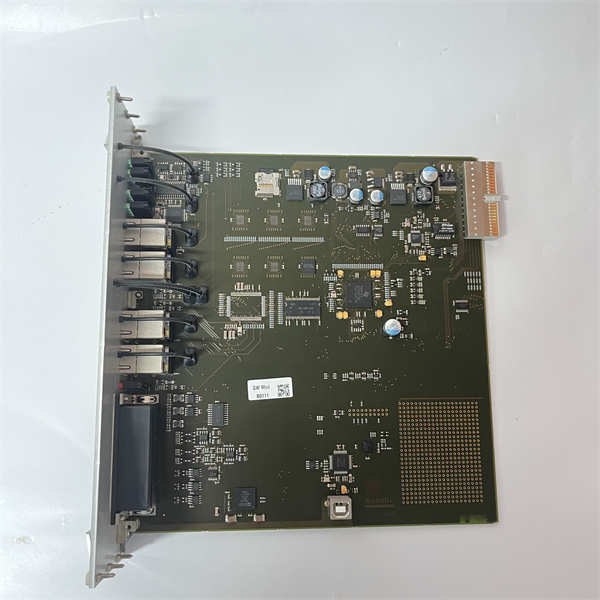

The Autoliv Gtw.Mod. B0110 627697900B is a specialized gateway communication module manufactured by Autoliv, a global leader in automotive safety systems. This module acts as a critical data router within a vehicle's passive safety network, facilitating reliable and high-speed communication between various safety system components, such as sensors and control units.
In a modern vehicle's safety system, multiple satellite sensors (e.g., front, side) need to communicate their status and crash data to the central safety electronic control unit (ECU) in real-time. The Autoliv Gtw.Mod. B0110 627697900B is deployed as a central communication node. It aggregates data from these distributed sensors via a high-speed bus (e.g., PSI5 or ASRB), performs necessary protocol processing, and ensures the robust and timely delivery of critical information to the main airbag control unit. This application solves the pain points of data integrity, network latency, and reliability, which are paramount for making correct deployment decisions within milliseconds during a collision event.
Main Parameters | Value/Description |
Product Model | Autoliv Gtw.Mod. B0110 627697900B |
Manufacturer | Autoliv |
Product Category | Gateway Communication Module |
Function | Data Routing & Protocol Interface within Safety System |
Compatible Networks | Interfaces with vehicle safety buses (e.g., PSI5, ASRB) and ECU |
Operating Voltage | Standard automotive range (e.g., 9-16 VDC) |
Communication Protocol | Proprietary Autoliv safety bus protocol |
Operating Temperature | -40°C to +85°C / +105°C (Automotive grade) |
Safety Integrity | Designed to meet relevant ASIL standards (e.g., ISO 26262) |
· •Innovation Point 1: Reliable Safety-Critical Data Routing. The primary innovation of the Gtw.Mod. B0110 627697900B is its guaranteed data delivery within the stringent timing constraints of a crash event. It employs robust error-checking and fault-tolerant communication mechanisms to ensure that sensor data reaches the decision-making ECU without corruption or significant delay.
· •Innovation Point 2: Optimized for Distributed Sensor Architectures. This gateway module is designed to support modern safety systems that use a decentralized network of sensors. It efficiently manages communication with multiple sensors, reducing wiring complexity and weight compared to traditional star-topology systems, while enhancing overall system reliability.
· •Innovation Point 3: Advanced Built-in Self-Test (BIST) and Diagnostics. The module features comprehensive continuous self-monitoring. It can detect internal faults or communication errors on the network buses and report these faults to the main ECU. This capability is crucial for ensuring the system's readiness and functional safety throughout the vehicle's lifecycle.
During the development of a new vehicle platform targeting a 5-star safety rating, engineers faced challenges with signal integrity and latency in a complex sensor network. By integrating the Autoliv Gtw.Mod. B0110 627697900B, they created a robust communication backbone. In crash testing, the gateway ensured that data from all corner sensors was received by the central ECU simultaneously and accurately, enabling precise algorithm execution for optimal airbag deployment. This contributed directly to achieving superior occupant protection scores in offset and side-impact tests.
· •Autoliv Satellite Sensors (e.g., front impact sensors): These are the end nodes that send crash data to the Gtw.Mod. B0110 627697900B gateway.
· •Autoliv ACU (Airbag Control Unit): The main ECU that receives processed data from the gateway to make deployment decisions.
· •Autoliv Safety System Wiring Harness: The specialized wiring that interconnects the sensors, gateway, and ACU, designed for high reliability.
· •Autoliv Side Impact Sensors: Specific sensors that communicate via the gateway to provide data for side airbag and curtain airbag deployment.
· •Autoliv Central Safety ECU: A higher-level controller that may integrate the functions of the gateway and ACU in some system architectures.
Installation of the Autoliv Gtw.Mod. B0110 627697900B is a precise process performed during vehicle assembly, following strict automotive engineering specifications. Its location and mounting are defined to optimize network topology. Connection is made via a dedicated, secure automotive-grade connector.Routine maintenance is not required by the end-user. The module is designed for the life of the vehicle. Diagnostics are performed through the vehicle's onboard diagnostics system, which can interrogate the gateway and the safety network for faults. Our support covers the entire lifecycle, from initial system design and integration consulting for OEMs to technical support for diagnostics and a guaranteed supply of genuine Autoliv Gtw.Mod. B0110 627697900B modules for the aftermarket and repair sector.
