9100 T9100

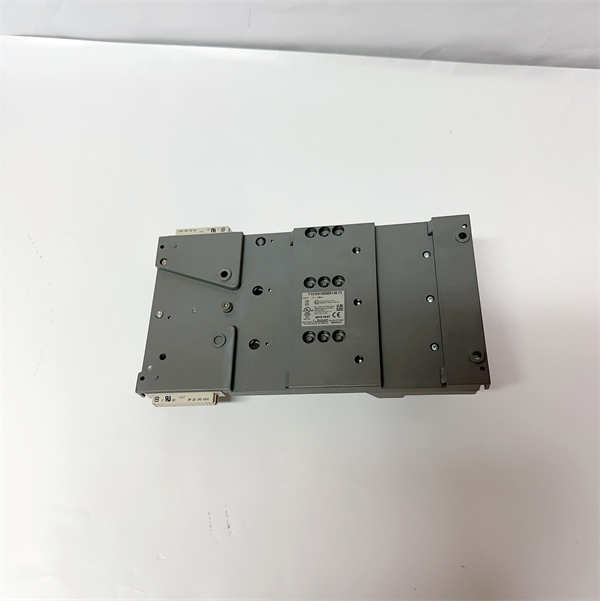

The ICS TRIPLEX T9100 T9100 is a fault-tolerant, Triple Modular Redundant (TMR) main processor module manufactured by ICS Triplex (now part of Schneider Electric) for the renowned Triconex Tricon safety instrumented system. This module serves as the core computing engine of the safety system, executing safety logic with the highest level of reliability and availability to protect personnel, equipment, and the environment.

Application Scenarios:

In a hazardous chemical processing unit handling flammable gases, a rapid pressure surge could lead to a catastrophic incident. The ICS TRIPLEX T9100 T9100 processor continuously monitors multiple safety sensors. When a critical setpoint is exceeded, the TMR system processes three independent signal paths simultaneously. The T9100 executes the voting logic and, within milliseconds, commands the final elements (like emergency shutdown valves) to safely isolate the process. This application highlights its role in solving the critical pain point of preventing dangerous failures while maximizing operational availability.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: True Triple Modular Redundant (TMR) Architecture. The T9100 T9100 embodies the core TMR principle, containing three isolated and synchronized processor channels. Each channel independently executes the same application logic. A dedicated hardware voter compares the outputs of all three channels every scan cycle. The system acts on the majority (2-out-of-3 voting), allowing it to tolerate a fault in any single channel without compromising the safety function or causing a process shutdown. This provides both high safety integrity and high availability.

· •Innovation Point 2: Advanced Fault Detection and Isolation. The module continuously performs extensive self-diagnostics on its hardware, including processor operation, memory integrity, and communication health. It can detect and report faults to the engineering workstation, enabling proactive maintenance. Crucially, a faulty channel is electrically isolated, preventing it from affecting the healthy channels, which is fundamental to maintaining system integrity.

· •Innovation Point 3: Seamless System Integration and Scalability. The T9100 T9100 is designed for seamless integration with the comprehensive family of Triconex I/O modules (analog, digital, communication). It supports various communication protocols to interface with the plant DCS and other subsystems, making it the central, integrable hub of a modern safety instrumented system. Its design supports scalability from small to very large safety applications.

Application Cases and Industry Value:

An offshore oil and gas platform implemented a new Fire & Gas (F&G) and ESD system based on a Tricon v11 platform with the ICS TRIPLEX T9100 T9100 as the main processor. The previous system suffered from nuisance trips. The TMR design of the T9100 eliminated these trips, increasing production availability. When a critical gas detection sensor failed, the system correctly processed the input from the remaining two healthy sensors, initiating a safe shutdown only when a second, confirming sensor detected gas, thereby preventing both a dangerous situation and an unnecessary production halt, saving millions in potential lost production.

Related Product Combination Solutions:

· •ICS TRIPLEX Analog Input Module (e.g., T9432): Modules that bring 4-20mA signals from field transmitters into the Tricon system for the T9100 T9100 to process.

· •ICS TRIPLEX Digital Output Module (e.g., T9461): Modules that receive trip commands from the T9100 T9100 to de-energize and actuate final elements like shutdown valves.

· •ICS TRIPLEX Communication Module (e.g., T8111C): A module that enables communication between the Tricon system (with the T9100 T9100) and a host DCS for monitoring and data exchange.

· •ICS TRIPLEX Power Supply (e.g., T8850): The redundant, hot-swappable power supply modules that provide clean, reliable power to the chassis containing the T9100 T9100.

· •Triconex TriStation 1131: The engineering software environment used to program, configure, and diagnose the application logic executed by the T9100 T9100 main processor.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ICS TRIPLEX T9100 T9100 must be performed by certified personnel following strict safety procedures. It is carefully inserted into the designated slot in the Tricon v11 chassis. Its hot-swap capability allows for maintenance without taking the entire safety system offline. Configuration and application logic download are performed using the TriStation 1131 software.Routine maintenance involves monitoring the system's health and diagnostics through the software. The module's robust TMR design ensures extreme reliability. We provide comprehensive lifecycle support, from initial Safety Requirement Specification (SRS) review and system design to installation supervision, validation, and 24/7 technical support. We guarantee a reliable supply of genuine, factory-tested ICS TRIPLEX T9100 T9100 modules.
