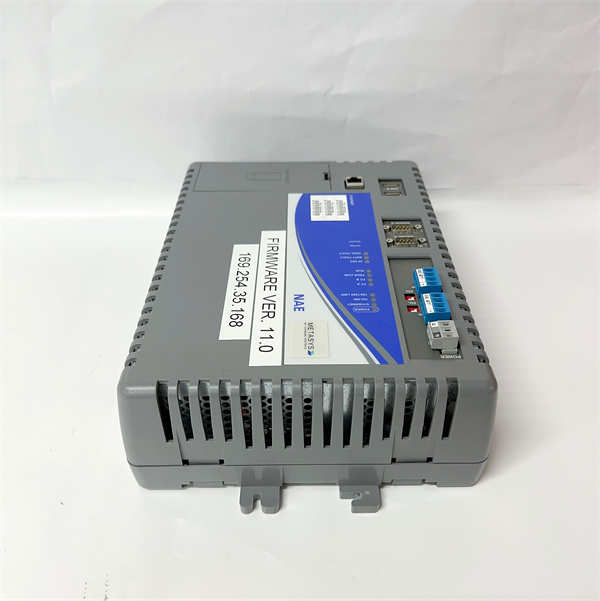

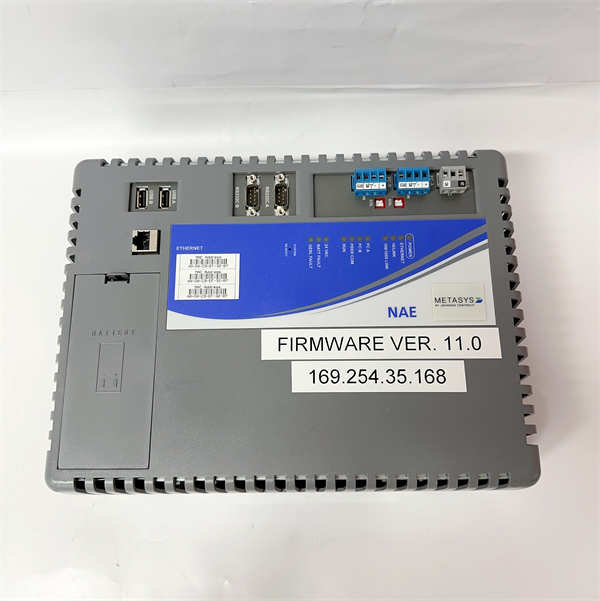

The Johnson Controls MS-NAE-5510-2 is a advanced Network Automation Engine (NAE) from Johnson Controls, serving as a supervisory controller and integration gateway in the Metasys® Building Management System (BMS). This powerful device acts as the central nervous system for building automation, seamlessly connecting, managing, and optimizing a wide array of building subsystems.
In a modern, multi-purpose hospital, managing HVAC, lighting, and life safety systems efficiently is critical for patient care and operational cost control. The Johnson Controls MS-NAE-5510-2 is installed in the central control room, continuously collecting data from thousands of points across the facility. It integrates standalone BACnet-enabled chillers with the hospital's legacy LON-based VAV controllers and the fire alarm system. When the MS-NAE-5510-2 receives a signal from the fire panel, it automatically commands the HVAC system to initiate smoke evacuation protocols, demonstrating its vital role in ensuring both operational efficiency and life safety compliance.
Main Parameters | Value/Description |
Product Model | Johnson Controls MS-NAE-5510-2 |
Manufacturer | Johnson Controls |
Product Category | Network Automation Engine (BMS Supervisor/Integration Gateway) |
System Platform | Metasys® Building Management System |
Primary Network | BACnet/IP over 10/100 Mbps Ethernet |
Support for Other Protocols | Native support for LONMARK®, BACnet MS/TP, N2, and others |
Point Capacity | High capacity for thousands of data points (objects) |
Processing Power | High-performance processor for complex data handling and logic sequences |
User Interface | Embedded web server for browser-based access and configuration |
Physical Interfaces | Ethernet port, multiple serial ports for field-level networks |
Power Supply | 24VAC or similar standard BMS power input |
The Johnson Controls MS-NAE-5510-2 is built on an open, yet secure, architecture that provides significant advantages over proprietary systems:
· •Innovation Point 1: Multi-Protocol Integration Hub: A key innovation of the MS-NAE-5510-2 is its native support for multiple building automation protocols. It can act as a BACnet/IP device on the management network while simultaneously talking to field devices via BACnet MS/TP, LON, or the legacy N2 bus. This eliminates the need for multiple, separate gateways, simplifying system architecture and reducing costs.
· •Innovation Point 2: Embedded Data Visualization and Management: The device features a powerful embedded web server. This allows facility managers and technicians to access the entire system through a standard web browser, providing real-time graphics, trend logs, alarm management, and system configuration without requiring dedicated, expensive client software on every computer.
· •Innovation Point 3: Advanced Application Engine: Beyond simple data gathering, the MS-NAE-5510-2 contains a robust application engine capable of executing complex custom control programs, global logic sequences, and sophisticated energy management strategies. This turns the BMS from a passive monitoring tool into an active, optimizing asset.
A large international airport was struggling with high energy costs and disparate control systems from various terminals. By deploying a centralized Metasys system with multiple Johnson Controls MS-NAE-5510-2 engines as zone supervisors, the airport achieved unified visibility and control. The MS-NAE-5510-2 units integrated the HVAC, lighting, and gate-side air conditioning systems. By implementing optimized start-stop schedules and demand-controlled ventilation based on real-time flight schedules and occupancy, the airport reported a 22% reduction in annual energy consumption, translating to millions of dollars in savings, while improving passenger comfort.
The Johnson Controls MS-NAE-5510-2 is the central node in a comprehensive ecosystem. Essential related products include:
· •Johnson Controls MSEA-R2216: A 16-point universal input/output module that expands the point capacity of the MS-NAE-5510-2 for connecting more field devices.
· •Johnson Controls MSEA-R1812: A 12-point relay output module, used to control actuators, pumps, and fans directly from the system supervised by the MS-NAE-5510-2.
· •Johnson Controls VMA-Series VAV Controllers: Field-level controllers that manage individual zones and are typically networked to a MS-NAE-5510-2 via BACnet MS/TP.
· •Johnson Controls FX Series Supervisors: Higher-level servers that can aggregate data from multiple MS-NAE-5510-2 engines across a campus for enterprisewide management.
· •Johnson Controls TEC3000 Series Controllers: Programmable field controllers for HVAC equipment, seamlessly integrated under the MS-NAE-5510-2.
Installation of the Johnson Controls MS-NAE-5510-2 is typically performed by certified system integrators. It is designed for standard DIN rail mounting within a control panel. Connection involves standard Ethernet cabling for the network and twisted-pair wiring for the field-level buses. The web-based interface significantly simplifies initial configuration and commissioning compared to older, software-dependent systems.Routine maintenance is minimal due to the appliance-like robustness of the device. The primary tasks involve monitoring system health through its built-in diagnostics and performing regular backups of the database. The modular design allows for easy replacement if necessary. We provide comprehensive technical support, from system design and startup assistance to troubleshooting and training, ensuring you maximize the return on your investment in the MS-NAE-5510-2.
