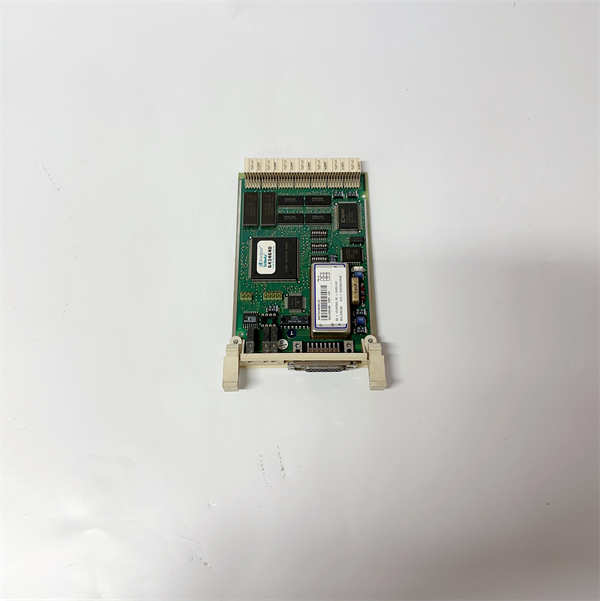

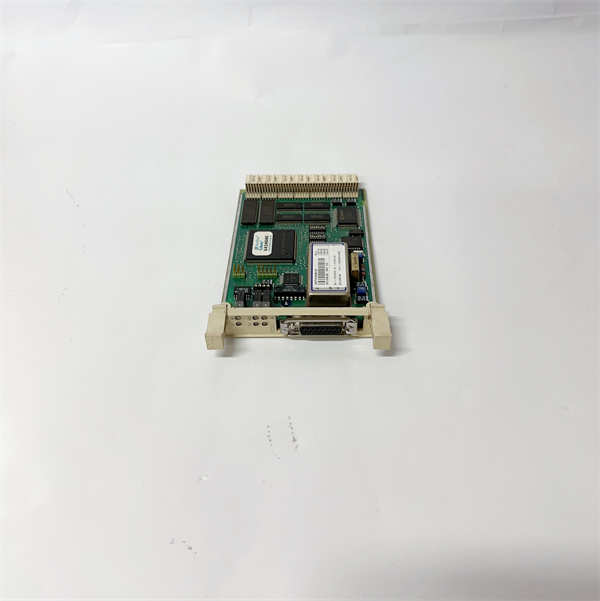

The ABB DAPI100 3AST000929R109 is a specialized communication interface module designed for ABB's ACS series drives. This adapter board serves as a critical communication gateway, enabling seamless data exchange between the drive and higher-level control systems like PLCs or DCS.

Application Scenarios:

In an automated packaging line, multiple ACS880 drives control conveyor motors that must synchronize precisely to maintain product spacing. The ABB DAPI100 3AST000929R109 modules are installed in each drive. They facilitate real-time communication over a PROFIBUS network, allowing the central PLC to precisely control the speed and torque of each drive simultaneously. This application solves critical pain points of speed synchronization and real-time monitoring, ensuring smooth material flow and preventing production bottlenecks.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: Native Drive Integration. The DAPI100 3AST000929R109 is engineered for direct, seamless integration within ABB's drive architecture. It plugs directly into the drive's control board, ensuring optimal signal integrity and reliability compared to external gateways, which reduces wiring complexity and potential points of failure.

· •Innovation Point 2: High-Performance PROFIBUS DP-V1 Protocol Support. This module supports the advanced PROFIBUS DP-V1 standard, which enables not only cyclic data exchange for control but also acyclic communication for parameterization, diagnostics, and alarm handling. This allows for detailed drive monitoring and remote configuration without interrupting the control process.

· •Innovation Point 3: Robust Electrical Design for Industrial Environments. The module features built-in galvanic isolation on the communication interface. This protects both the drive and the network from electrical noise, ground loops, and voltage transients commonly found in industrial settings, ensuring stable and error-free data communication.

Application Cases and Industry Value:

A steel processing plant utilized a ABB ACS880 drive with the DAPI100 3AST000929R109 module to control a main rolling mill motor. The PROFIBUS connection provided real-time torque and speed data to the plant's DCS. This enabled operators to precisely adjust the rolling pressure in response to material variations, improving product thickness consistency by 18%. Additionally, the module's diagnostic capabilities alerted maintenance to a developing cooling fan issue days before it would have caused a shutdown, enabling planned maintenance and avoiding 24 hours of lost production worth over $100,000.

Related Product Combination Solutions:

· •ABB ACS880 Drive: The flagship drive unit that the DAPI100 module is designed to interface with, providing the power control.

· •ABB NDPP-02C PROFIBUS Adapter: An alternative or complementary module for different protocol needs or drive series.

· •ABB Drive composer Pro: The engineering tool used to configure and parameterize the drive and its communication settings, including those for the DAPI100.

· •ABB PLC (e.g., AC500 series): A typical controller that would act as the PROFIBUS master, communicating with the drives equipped with the DAPI100.

· •ABB HMI Panels: Operator interfaces that can display data acquired from the drives via the DAPI100 module.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ABB DAPI100 3AST000929R109 involves opening the drive cabinet, locating the appropriate slot on the drive's control unit, and securely plugging in the module. Configuration is then performed using ABB's Drive composer software to set the PROFIBUS node address and map drive parameters to the process data.Routine maintenance is minimal due to the solid-state design. It primarily involves ensuring the communication connectors are secure and monitoring the network status via the drive's diagnostics or the PLC. The module's robust construction ensures long-term reliability. We provide comprehensive lifecycle support, from initial system design and configuration assistance to 24/7 technical support and a guaranteed supply of genuine ABB DAPI100 3AST000929R109 modules.
