5SHY5055L0002 3BHE019719R0101 GVC736BE101 ABB

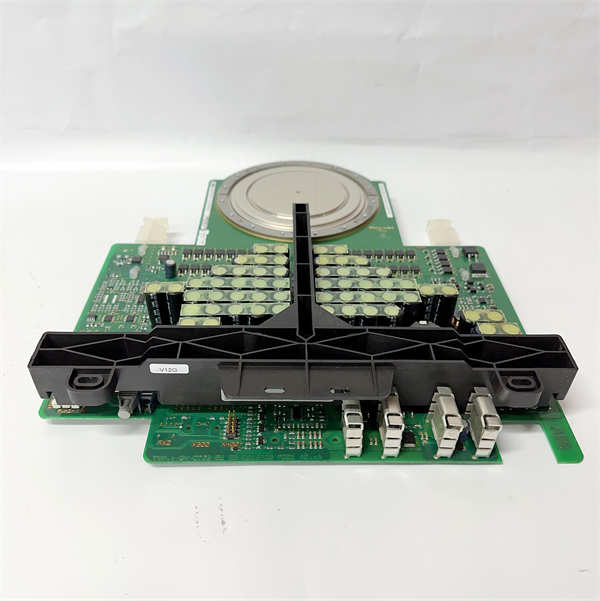

The ABB 5SHY5055L0002 3BHE019719R0101 GVC736BE101 is a high-power IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module and its associated gate drive unit, designed for ABB's ACS6000 series of medium-voltage variable frequency drives. This critical component assembly serves as the primary power switching element in high-power industrial drive systems.

Application Scenarios:

In a steel mill's main rolling mill drive, the ACS6000 drive must control a multi-megawatt synchronous motor with extreme precision and reliability. The ABB 5SHY5055L0002 power module, controlled by the GVC736BE101 gate unit, handles the high voltage and current switching required for motor control. Its robust design ensures stable operation under heavy and dynamic loads, directly addressing the pain points of power handling capacity and operational uptime in critical process industries.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: High-Power IGCT Technology. The 5SHY5055L0002 utilizes IGCT technology, which combines the high-power handling capability of a GTO (Gate Turn-Off thyristor) with the faster switching performance of an IGBT. This results in lower switching losses and higher efficiency for medium-voltage, high-power applications compared to traditional solutions.

· •Innovation Point 2: Integrated Gate Drive Unit (GVC736BE101). The GVC736BE101 gate unit is not a simple driver; it provides the precise, high-current pulses required for reliable and fast switching of the IGCT. It also includes vital protection and monitoring functions, ensuring the power semiconductor operates within its safe operating area (SOA).

· •Innovation Point 3: Robust Packaging and Cooling. The module is designed for extreme electrical and thermal stress. Its packaging ensures low stray inductance, which is critical for high-voltage switching. The integrated liquid cooling system efficiently manages the significant heat generated, enabling reliable operation at high power levels.

Application Cases and Industry Value:

A mining company operating large grinding mills experienced frequent failures with the power cells of their existing MV drives, leading to costly unplanned downtime and lost production. After retrofitting with ACS6000 drives utilizing the ABB 5SHY5055L0002 and GVC736BE101 power stacks, the system demonstrated exceptional reliability. The robust design of the IGCT modules handled the demanding load cycles of the grinding mill perfectly. Over a five-year period, the drives achieved over 99.8% availability, drastically reducing maintenance costs and increasing ore processing throughput by 15%.

Related Product Combination Solutions:

· •ABB ACS6000 Control Unit (e.g., KUC755AE): The top-level controller that provides the switching commands to the GVC736BE101 gate units.

· •ABB SNAT 6051A Fiber Optic Kit: The communication interface that connects the control unit to the gate units, ensuring noise-immune signal transmission.

· •ABB ACS6000 Air Cooler Unit: Provides the cooling air for the cabinet, working in conjunction with the liquid cooling of the power modules.

· •ABB Power Supply Unit (e.g., 5SXE): Provides auxiliary power for the gate units and control electronics.

· •ABB Service Tool Kits: Specialized tools for safe handling, installation, and maintenance of the power modules.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ABB 5SHY5055L0002 and GVC736BE101 assembly is a highly specialized task that must be performed by trained technicians. It involves careful handling to avoid electrostatic discharge, proper mounting to the heatsink with the correct torque, and precise connection of power terminals, gate drive cables, and cooling hoses.Routine maintenance primarily involves periodic inspection of electrical connections for tightness and checking the cooling system for leaks or flow restrictions. The gate unit provides diagnostic information that can be monitored via the drive's control system. We provide comprehensive lifecycle support, from initial system design and spare part planning to on-site technical assistance and a guaranteed supply of genuine ABB 5SHY5055L0002 3BHE019719R0101 GVC736BE101 modules.
