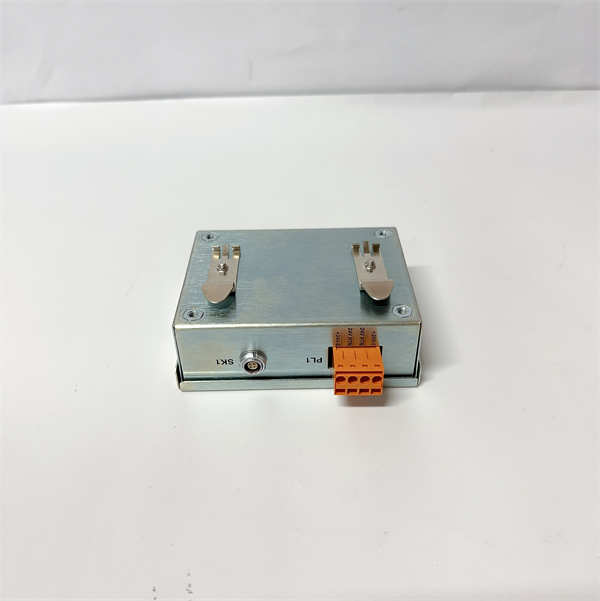

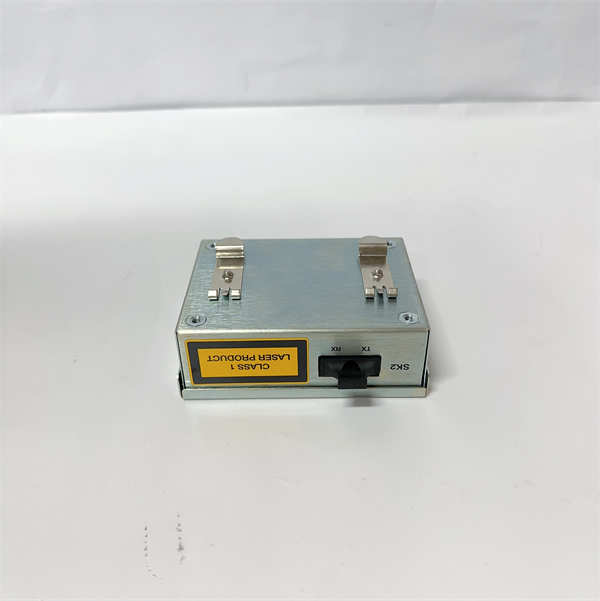

T8314 ICS TRIPLEX

The ICS TRIPLEX T8314 is a high-density, 16-channel analog input module manufactured by ICS Triplex (now part of Schneider Electric) for the Triconex Tricon safety instrumented system. This module serves as a critical interface for connecting analog field instruments—such as pressure transmitters and temperature sensors—to the Triple Modular Redundant (TMR) safety system, providing reliable signal conditioning and conversion for process monitoring and safety functions.

Application Scenarios:

In a hazardous chemical processing unit, precise monitoring of reactor pressure is critical for preventing overpressure scenarios. The ICS TRIPLEX T8314 module is installed in the Tricon chassis, where it interfaces with three redundant pressure transmitters (each connected to a separate channel). The module conditions the 4-20mA signals and provides three independent readings to the TMR system. This redundancy allows the safety logic to perform voting (e.g., 2-out-of-3 voting), ensuring a reliable trip decision even if one transmitter fails, thereby maintaining both safety and operational availability.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: Triple Modular Redundant (TMR) Signal Acquisition. The T8314 is designed with a focus on functional safety. While it is a single module, its design and integration within the TMR architecture ensure that analog signals are processed with redundancy in mind. When used in a typical safety application, three separate transmitters are wired to three channels of the module (or across multiple modules). The Tricon system then uses these three independent measurements for high-integrity voting, eliminating single points of failure in the sensing loop.

· •Innovation Point 2: High-Density Design with Advanced Signal Conditioning. The module incorporates 16 channels in a single slot, optimizing rack space. Each channel includes sophisticated signal conditioning that provides filtering, scaling, and diagnostics. This high channel density reduces the number of modules required for large applications, simplifying system design and lowering overall cost.

· •Innovation Point 3: Comprehensive Built-in Diagnostics. The module continuously monitors its own health and the status of each input channel. It can detect critical faults such as wire breaks (open circuit), short circuits, and out-of-range signals. These diagnostics are reported to the main Tricon processor, enabling proactive maintenance and preventing dangerous undetected failures, which is a cornerstone of SIL 3 certification.

Application Cases and Industry Value:

A liquefied natural gas (LNG) terminal used the ICS TRIPLEX T8314 modules in its critical safety system to monitor pressure in cryogenic storage tanks. The previous system experienced nuisance trips due to single-channel signal failures. By implementing a redundant sensor configuration with the T8314, the system achieved 2-out-of-3 voting logic. When a temperature transmitter failed due to extreme cold, the system automatically disregarded the faulty signal based on the agreement of the other two channels, preventing a spurious shutdown. This increased plant availability by 15% and avoided an estimated $2M in production loss per incident.

Related Product Combination Solutions:

· •ICS TRIPLEX T8402 Main Processor: The central TMR brain of the Tricon system that receives and processes the analog data from the T8314 modules.

· •ICS TRIPLEX T8461 Digital Output Module: A complementary module that executes safety shutdown commands (e.g., closing safety valves) based on the analog conditions monitored by the T8314.

· •ICS TRIPLEX T8151B Power Supply: The robust, redundant power supply unit that provides clean and reliable power to the chassis containing the T8314 and other critical modules.

· •ICS TRIPLEX T8700 Communication Module: A module that can interface the Tricon system (and its T8314 data) with a plant DCS for operator monitoring and data logging.

· •Triconex TriStation 1131 Software: The engineering environment used to configure the T8314's input scaling, alarm setpoints, and diagnostic parameters.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ICS TRIPLEX T8314 must be performed by qualified personnel. It involves inserting the module into an available slot in the Tricon chassis. Field wiring from the analog transmitters is connected to the module's terminal base unit. Proper shielding and grounding are critical for signal integrity. Configuration is performed using the TriStation 1131 software.Routine maintenance includes periodic verification of the module's health via system diagnostics and checking the calibration of connected field instruments. The hot-swap capability allows for module replacement without shutting down the entire safety system. We provide comprehensive lifecycle support, from initial system design and configuration to 24/7 technical support and a guaranteed supply of genuine ICS TRIPLEX T8314 modules.
