T8231 ICS TRIPLEX

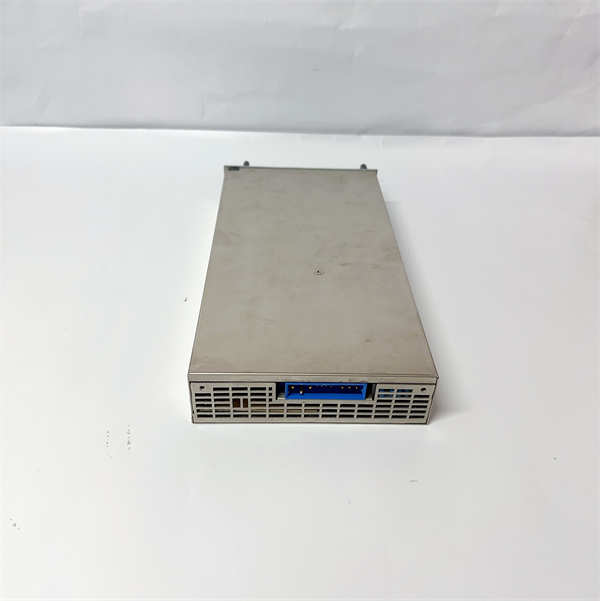

The ICS TRIPLEX T8231 is a high-integrity communication module manufactured by ICS Triplex (now part of Schneider Electric) for the renowned Triconex Tricon safety instrumented system. This module serves as a critical communication gateway, enabling secure and reliable data exchange between the Triple Modular Redundant (TMR) safety system and external control systems or asset management platforms.

Application Scenarios:

In a large oil refinery's catalytic cracking unit, operators in the central control room need real-time visibility into the status of the Emergency Shutdown (ESD) system managed by the Tricon system. The ICS TRIPLEX T8231 communication module is installed in the Tricon chassis, where it establishes a robust link with the main Distributed Control System (DCS). It transmits critical data—such as alarm conditions, valve positions, and system health diagnostics—allowing operators to monitor the safety system's status seamlessly alongside the basic process control system. This integration is vital for maintaining situational awareness and enabling coordinated responses during process upsets.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: TMR-to-Host Communication with High Integrity. The T8231 is engineered to maintain the integrity of data as it moves from the fault-tolerant Tricon system to a non-redundant host. It employs advanced error-checking and validation techniques to ensure that the data received by the DCS or HMI is an accurate reflection of the Tricon system's state, which is crucial for operational decision-making.

· •Innovation Point 2: Secure and Deterministic Protocol Integration. The module acts as a protocol translator, seamlessly converting the Tricon's internal TMR communications into industry-standard protocols like MODBUS TCP/IP. This allows for straightforward and reliable integration with a wide range of third-party systems without requiring custom interface development, reducing complexity and engineering time.

· •Innovation Point 3: Comprehensive Diagnostic and Monitoring Capabilities. The T8231 provides extensive diagnostics for the communication link itself. It can detect and report issues such as connection timeouts, data corruption, and module health, enabling proactive maintenance and ensuring the reliability of this critical data pathway between the safety and control systems.

Application Cases and Industry Value:

A natural gas compressor station required integration of its Tricon-based ESD system with a new cloud-based asset performance management platform. The ICS TRIPLEX T8231 module was deployed as the communication bridge. It successfully transmitted equipment health data and event logs from the safety system to the platform, enabling predictive maintenance analytics. This resulted in a 40% reduction in unplanned downtime by identifying potential issues before they caused safety system activations, while also providing valuable data for regulatory compliance reporting.

Related Product Combination Solutions:

· •ICS TRIPLEX T8100 Series Main Processors: The central TMR processors (e.g., T8402, T8800) that the T8231 module communicates with to gather system data for external transmission.

· •ICS TRIPLEX Analog Input Modules (e.g., T8311): Modules whose process values (e.g., pressure, temperature) can be communicated externally through the T8231 gateway.

· •ICS TRIPLEX Digital Output Modules (e.g., T8461): Modules whose status (e.g., ESD valve commands) can be read and transmitted via the T8231.

· •ICS TRIPLEX Power Supply Modules (e.g., T8851): Provide reliable power to the chassis housing the T8231 and other critical modules.

· •Triconex TriStation 1131: The engineering software used to configure the Tricon system, including the data points and parameters for the T8231 communication module.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ICS TRIPLEX T8231 involves inserting it into an available slot in the Tricon V9/V10/V11 chassis. Its hot-swap capability allows for installation or replacement without powering down the entire safety system, which is critical for maintaining continuous protection. Configuration is performed using the TriStation 1131 software, where communication parameters and data mapping are defined.Routine maintenance involves monitoring the module's status and communication statistics through the Tricon diagnostic software. The module's robust design ensures high reliability. We provide comprehensive lifecycle support, from initial system integration planning and configuration assistance to 24/7 technical support and a guaranteed supply of genuine, factory-tested ICS TRIPLEX T8231 modules to ensure your safety system's communication links remain fully operational.
