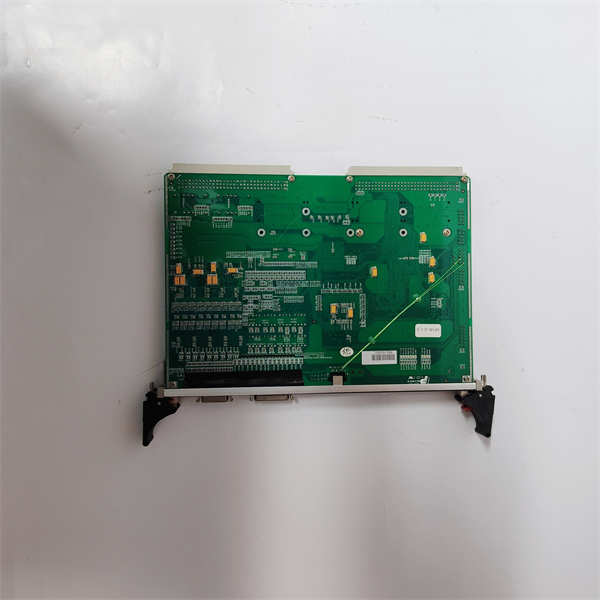

The GE ESP10B is a critical power supply and control module designed for the General Electric EX2100 excitation system. This essential component provides regulated DC power and control functions for the excitation system, ensuring reliable operation of synchronous generators in various power plant applications.
In a thermal power plant's generator excitation system, the GE ESP10B module serves as a key power conversion and control unit within the EX2100 cabinet. During generator startup, the ESP10B facilitates the field flashing process by providing controlled DC power to establish the initial magnetic field. During normal operation, it works in conjunction with other excitation modules to maintain precise generator terminal voltage under varying load conditions. The robustness of the ESP10B ensures continuous power supply to critical control circuits, preventing excitation system failures that could lead to generator tripping and power outages.
| Main Parameters | Value/Description || | :--- || Product Model | GE ESP10B || Manufacturer | General Electric (GE) || Product Category | Excitation System Power/Control Module || Parent System | GE EX2100 Excitation Control System || Input Voltage | Dependent on system design (typically three-phase AC) || Output Specifications | Regulated DC power for excitation system components || Cooling Method | Integrated heat sinking, may include forced air cooling || Protection Features | Overcurrent, overvoltage, and overtemperature protection || Communication Interface | Integrated with EX2100 system communication network || Status Indicators | LED indicators for power and fault conditions || Mounting | Designed for installation in EX2100 system rack |
The GE ESP10B incorporates several advanced technologies that ensure reliable performance in critical power generation applications:
· •Innovation Point 1: High-Efficiency Power Conversion TopologyThe ESP10B utilizes advanced switching power supply technology with optimized thermal management, achieving conversion efficiencies typically exceeding 90%. This reduces heat generation and improves overall system reliability, especially important during continuous generator operation.
· •Innovation Point 2: Intelligent Load Management and ProtectionThe module features sophisticated load monitoring circuitry that dynamically adjusts output characteristics based on system demands. Advanced protection algorithms provide graded response to abnormal conditions, from warning alerts to coordinated shutdowns, preventing catastrophic failures.
· •Innovation Point 3: Redundant Design PhilosophyCritical power pathways within the ESP10B incorporate redundant components and automatic failover capabilities. This design ensures continuous operation even if individual components fail, significantly enhancing system availability and mean time between failures (MTBF).
A hydroelectric plant experienced recurring excitation system faults during peak power generation periods, resulting in frequent generator trips. Investigation revealed that the existing power supply modules could not maintain stable output during rapid load changes. Replacement with the GE ESP10B modules provided superior voltage regulation and better thermal performance. The enhanced stability of the new modules, particularly their ability to handle transient load conditions, reduced excitation-related trips by 85% in the first year of operation, significantly improving plant availability and revenue generation.
The GE ESP10B operates within an integrated excitation system environment. Key complementary components include:
· •GE ESM10A: Excitation system monitor module that works in concert with the ESP10B for comprehensive system control and protection.
· •GE EX2100 Controller: The main system processor that coordinates all excitation functions, including those managed by the ESP10B.
· •GE HPCI Module: High-power converter interface that may interface with the ESP10B for power stage control.
· •GE FCM Module: Field control module that works with the ESP10B to manage generator field parameters.
· •GE EX2100 I/O Modules: Various input/output modules that interface with the ESP10B for system monitoring and control.
Proper installation of the GE ESP10B requires certified technicians following GE's specific guidelines. The module must be precisely aligned and securely seated in its designated rack position, with all electrical connections tightened to specified torque values. Initial commissioning includes comprehensive functional testing under simulated operating conditions to verify performance.Preventive maintenance involves regular thermal imaging scans to identify potential hot spots, periodic verification of output parameters, and cleaning of cooling surfaces. The module's built-in diagnostics provide early warning of developing issues, allowing for planned maintenance during scheduled outages. We offer complete technical support services including installation supervision, operational training, troubleshooting assistance, and repair/exchange programs to minimize downtime.
