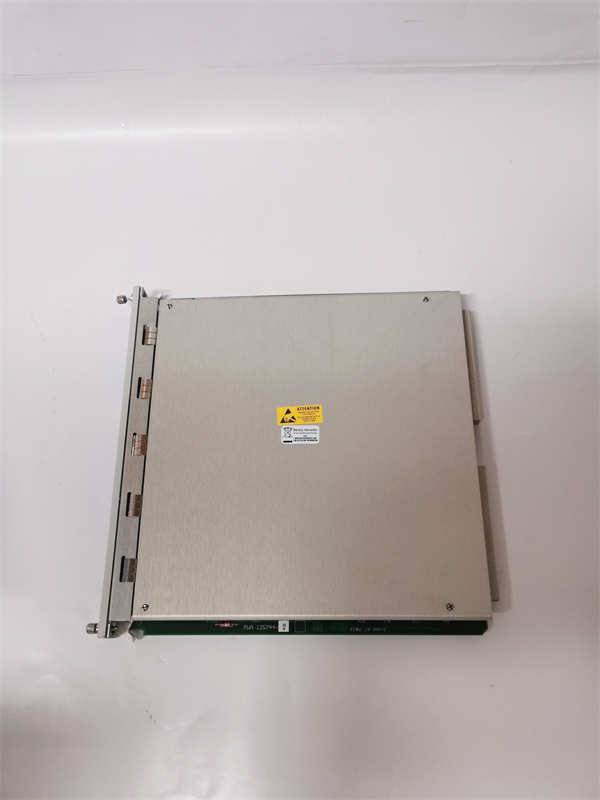

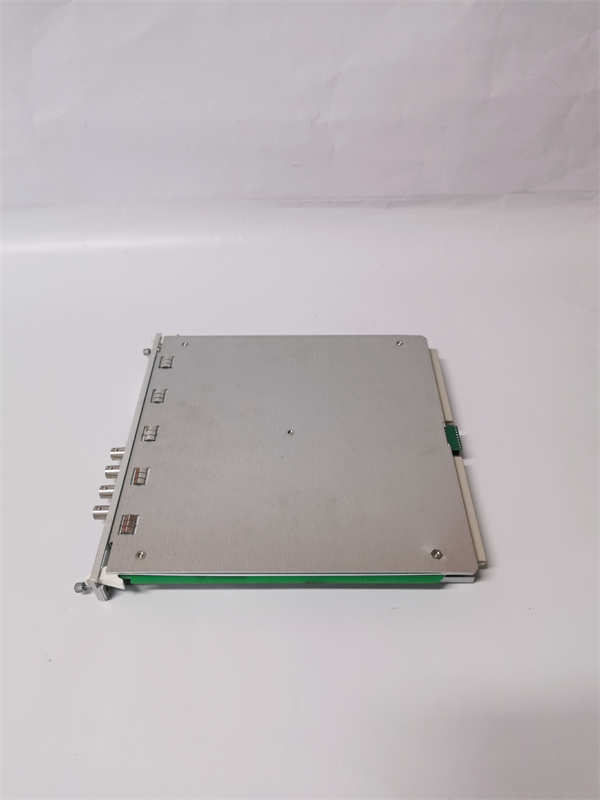

3500/42M 140734-02 BENTLY

The BENTLY NEVADA 3500/42M 140734-02 is a high-density, quad-channel Proximitor®/Seismometer Monitor module designed for the Bently Nevada 3500 machinery protection system. This advanced module serves as a critical interface for connecting eddy-current proximity probes and seismic transducers, providing comprehensive vibration and position monitoring for industrial rotating equipment.

Application Scenarios:

In a petrochemical plant's critical feed gas compressor, monitoring radial vibration and phase angle is essential for detecting imbalance, misalignment, and other mechanical faults. The BENTLY NEVADA 3500/42M 140734-02 module interfaces with four proximity probes installed on the compressor's bearings. It continuously processes the signals to provide real-time vibration amplitude and phase data. When vibration levels approach dangerous thresholds, the module triggers alarms in the control system, enabling operators to take preventive action before catastrophic failure occurs, thus protecting millions of dollars in equipment and ensuring process safety.

Parameter:

Technical Principles and Innovative Values:

· •Innovation Point 1: High-Density Quad-Channel Architecture. The 3500/42M 140734-02 consolidates monitoring for four measurement points into a single slot, optimizing rack space utilization. This design reduces the physical footprint and wiring complexity compared to using single or dual-channel modules, while maintaining the system's high reliability and meeting critical safety integrity levels (SIL 2).

· •Innovation Point 2: Advanced Dynamic Signal Processing for Diagnostics. Beyond providing overall vibration values, the module outputs raw, buffered dynamic waveforms for each channel. This enables maintenance engineers to perform detailed frequency spectrum analysis (FFT), which is crucial for diagnosing specific machinery faults like unbalance, misalignment, oil whirl, and rolling element bearing defects, facilitating a shift from reactive to predictive maintenance.

· •Innovation Point 3: Dual Safety and Protection Functionality. The module is TÜV certified for Safety Instrumented Functions up to SIL 2. This allows it to serve not only as a machinery protection device but also as part of a safety instrumented system (SIS), providing an extra layer of assurance for critical applications where the module itself is part of the safety loop.

Application Cases and Industry Value:

A hydroelectric power plant was experiencing unexplained vibrations in a turbine-generator unit that occurred at specific load points. Using the dynamic waveform outputs from the BENTLY NEVADA 3500/42M 140734-02 modules, analysts performed spectral analysis and identified the issue as hydraulic instability (vortex shedding) related to specific wicket gate openings, not a mechanical fault. This precise diagnosis prevented an unnecessary and costly turbine teardown. The plant adjusted its operating envelope based on the module's data, increasing annual energy production by 3% by allowing safer operation over a wider range and avoiding resonant conditions.

Related Product Combination Solutions:

· •BENTLY NEVADA 3300 XL 8mm Proximity Probes: The industry-standard eddy-current sensors that provide the raw gap voltage signal to the 3500/42M module for vibration and position measurement.

· •BENTLY NEVADA 3500/25 Keyphasor® Module: A module that provides the essential once-per-revolution timing reference signal required by the 3500/42M for accurate phase measurement.

· •BENTLY NEVADA 3500/15 Proximitor® Power Supply: Supplies power to the proximity probes connected to the 3500/42M module.

· •BENTLY NEVADA 3500/92 Communication Gateway: Transforms data from the 3500/42M and other modules into network protocols (e.g., Modbus TCP/IP) for integration with plant DCS or asset management systems.

· •BENTLY NEVADA System 1® Software: An advanced diagnostics platform that collects and analyzes data from the entire 3500 system, including the 3500/42M, enabling trend analysis and predictive maintenance.

Installation, Maintenance, and Full-Cycle Support:

Installation of the BENTLY NEVADA 3500/42M 140734-02 involves inserting it into an available slot in the 3500 series rack. Configuration, including alarm setpoints, sensor type, and scaling, is performed using Bently Nevada's dedicated configuration software. Proper installation and calibration of the associated proximity probes are critical for optimal performance.Routine maintenance is minimal but should include periodic verification of the probe system's health (gap voltage checks) and calibration. The module's front-panel LEDs provide immediate status information, and its diagnostic capabilities can be monitored via software. The robust design ensures long-term reliability. We provide comprehensive lifecycle support, from initial system design and configuration to 24/7 technical support and a guaranteed supply of genuine BENTLY NEVADA 3500/42M 140734-02 modules.
